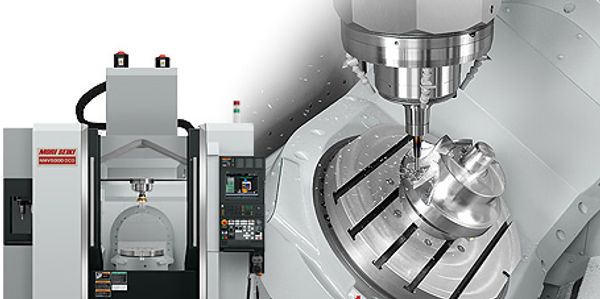

MORI SEIKI NMV1500

 5 axis machine

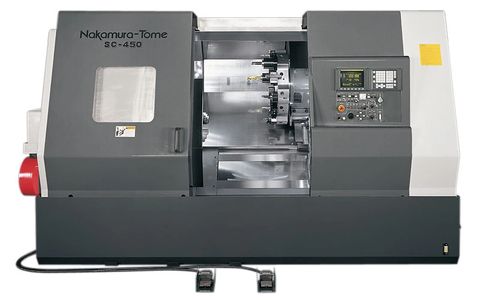

NAKAMURA-TOME SC-450

Swing Over Carriage: 20.47"

Distance Between Centers: 40.74"

Max Turning Diameter: 18.30"

Standard Turning Diameter: 12.40"

Max Turning Length: 28.14"

Max Bar Size: 3.14"

Chuck Size: 15"


HAAS VF6

X Axis                                                 64 "      1626 mm

Y Axis                                                 32 "      813 mm

Z Axis                                                 30 "      762 mm

4 Axis                                                 15" chuck 6" spindle bore

Spindle Nose to Table (~ max)       34 "      864 mm

Spindle Nose to Table (~ min)         4 "        102 mm

CAT 50 Taper

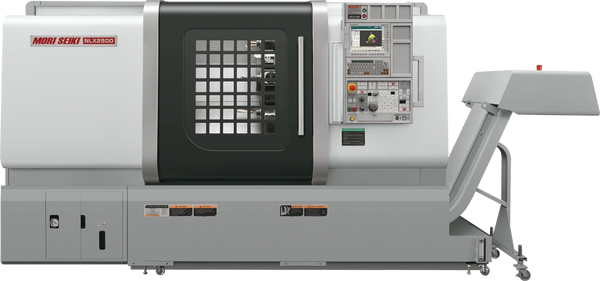

MORISEIKI NLX 2500/700

Max Turning Diameter14"

Chuck Size10"

Second Chuck Size 8"

Bar Capacity 3.125"

Power 30 H.P.

Tools Up to 12 OD or face live tools


PUMA 400

Chuck size 15

Swing 28

Bar Capacity 4.62

Machining Length 44.1

Turning Diameter 18.9

Max RPM 2000 rpm


HAAS VF4

HAAS VF4

X Axis                                                 50 "      1270 mm

Y Axis                                                 20 "      508 mm

Z Axis                                                 25 "      635 mm

4 Axis                                                  12” chuck 4” bore

Spindle Nose to Table (~ max)           29 "      737 mm

Spindle Nose to Table (~ min)            4 "        102 mm

CAT 40 taper


MODERN LA560

Swing Over Bed: – 22″

Swing Over Cross Slide: – 13″

Swing in Gap: – 30-7/8″

Gap Width in Front of Face Plate: – 10-5/8″

Height of Centers from Leg Bottom: – 42″

Distance between Centers: – 80″

Spindle Bore: – 4-1/16″


HAAS VF 2

Swing Over Bed 16”

Swing Over Cross Slide 9 – 7/16”

Swing In Gap 23 – 7/16”

Length of Gap 6-1/8”

Distance of Centres 40”

Centre Height 1085mm

Width of Bed 11 -13/16”


JOHNFORD ST-80


Chuck Size (in.)  24.000Max.

Swing: 36.220

Turning DiameterMax: 27.559

Turning Length (in.)Max: 86.000

Bar Capacity (in.)8.000

Tailstock: Standard (in.)

Quill Dia: 5.900

Stroke: 5.905

Quill Center: MT #7

Body Travel: 78.740


Hyd Mac H12 Automatic Band Saw

Programmable Control

Bar Puller
